Laser Panels

Finally... a new, unique look with the ease and value of a flat panel.

Learn more

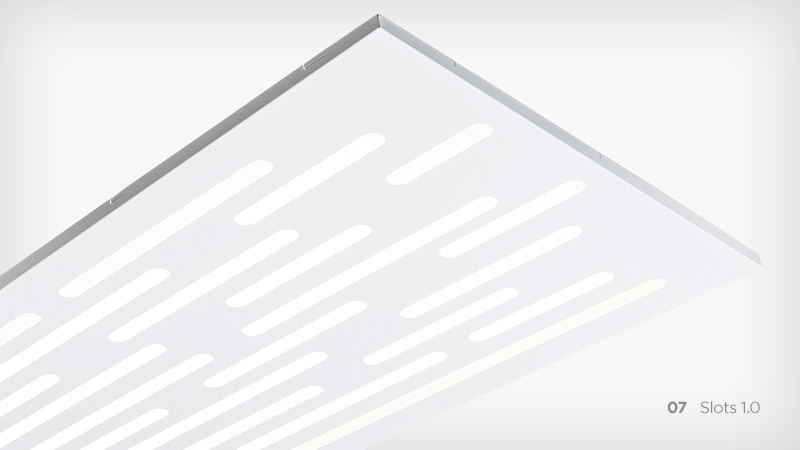

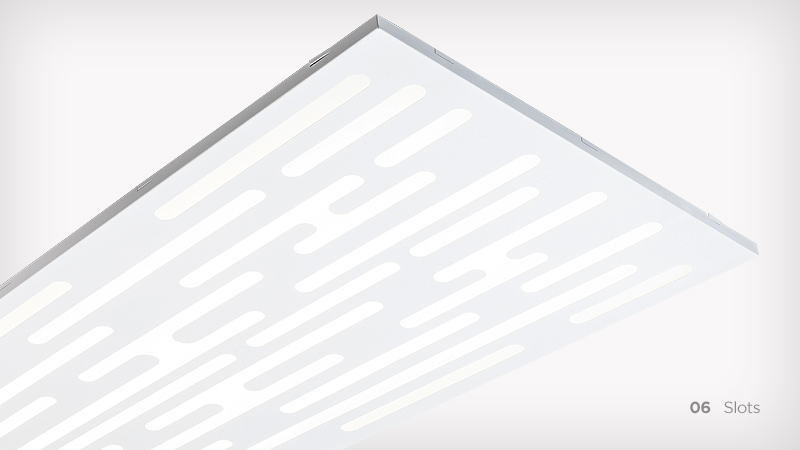

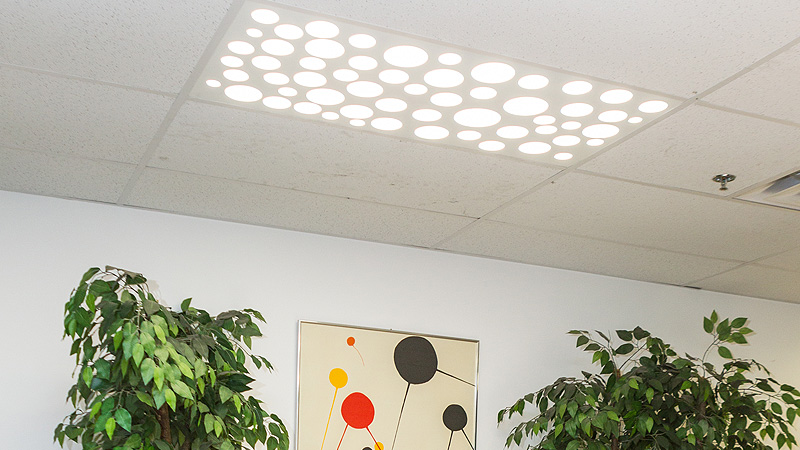

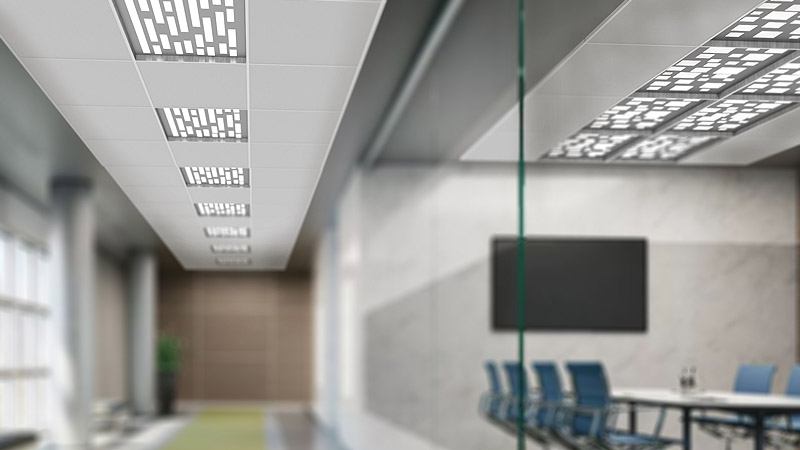

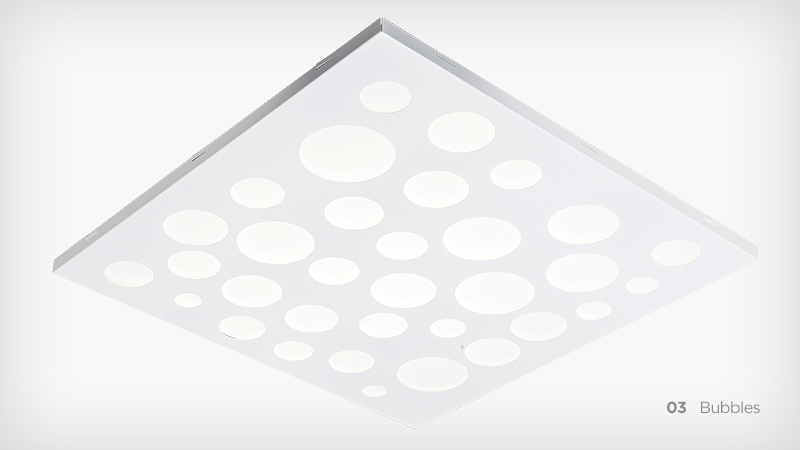

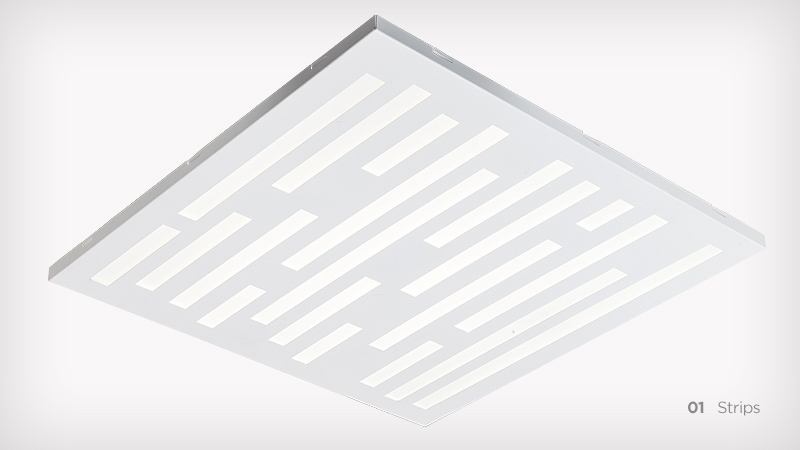

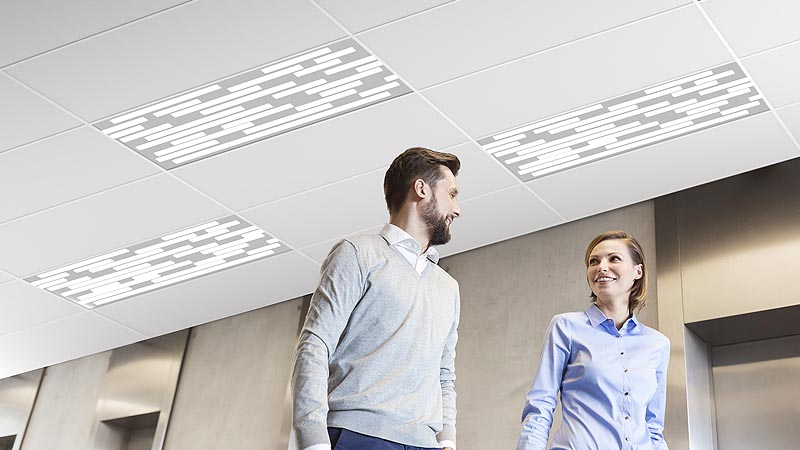

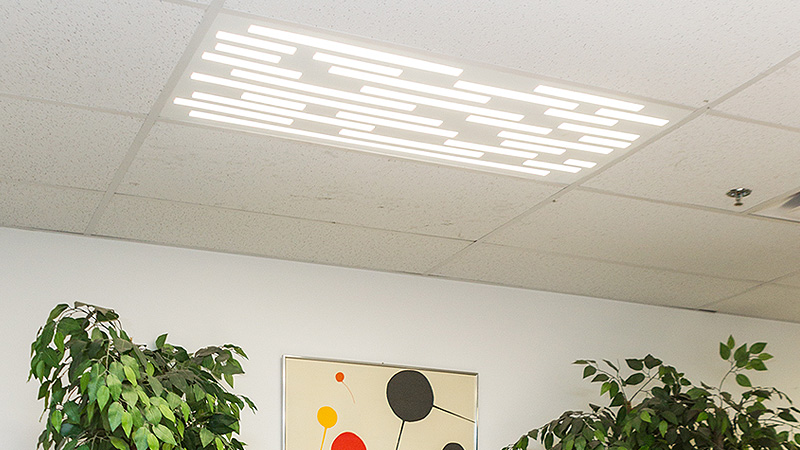

ICF Series Laser Panels, 03 Bubbles Pattern ICF Series ICF Series ICF Series Laser Panels, 01 Strips Pattern ICF Series Laser Panels, 06 Slots Pattern ICF Series Laser Panels, 07 Slots 1.0 Pattern ICF Series ICF Series
Quote Mark

All of our conference rooms feel like designer spaces now!”

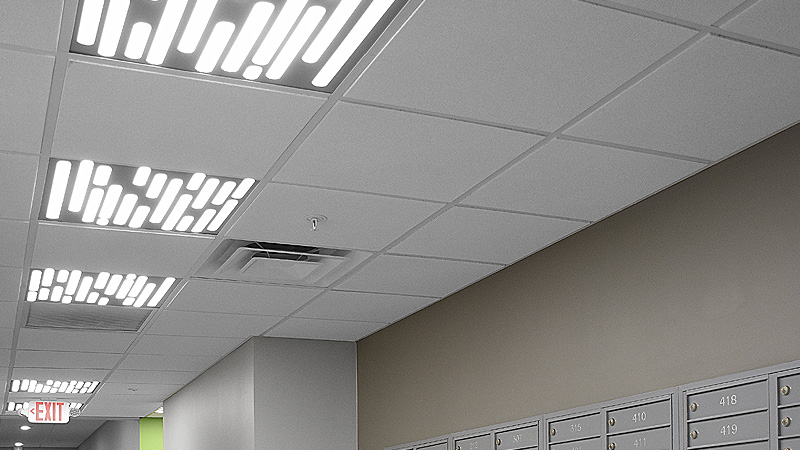

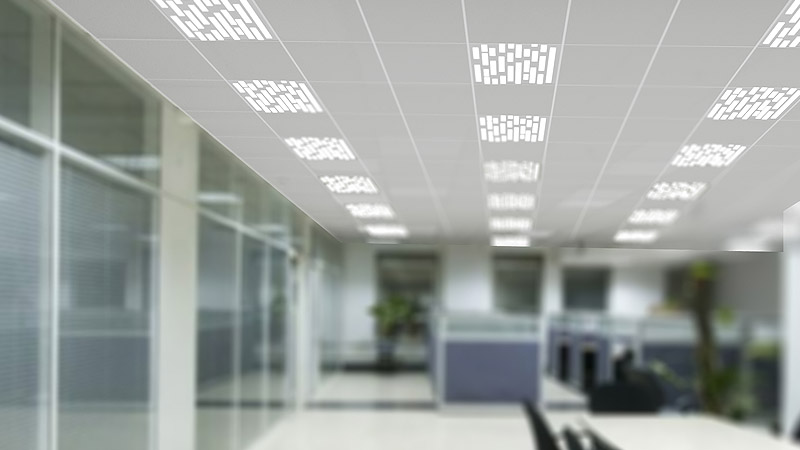

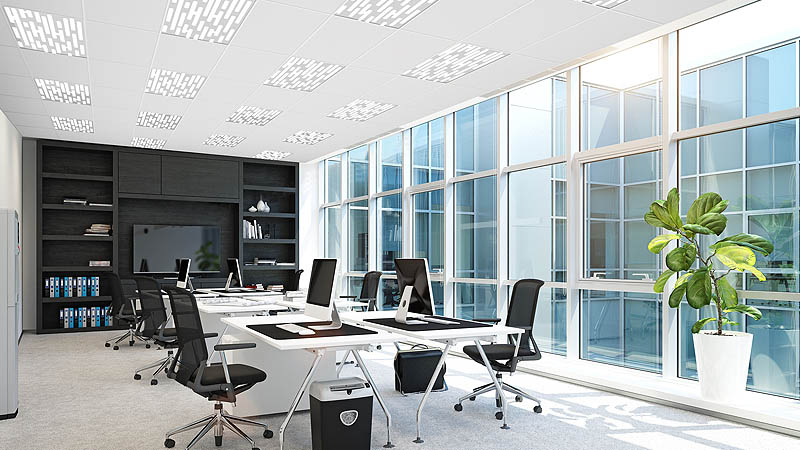

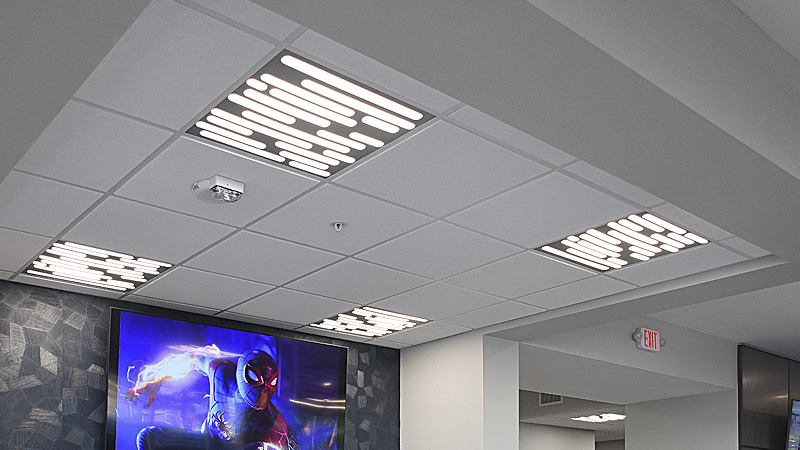

Choose from a multitude of Laser Panel patterns to revitalize office or retail spaces. LED flat panels provide energy efficient illumination behind a uniquely designed laser-cut fascia. These panels are ultra-versatile—easily select color temperature and wattage directly on the fixture using the 3-position switch. Available in 5 standard patterns, custom designs are available by consult.

Flexible. Striking. Cost-friendly.

  • 3 standard sizes – 1ft x 4ft, 2ft x 2ft, and 2ft x 4ft
  • 5 standard patterns with custom patterns available
  • Recessed mount for grid ceiling
  • Color and wattage selectable packages available for easy adjustments via a 3-position switch
  • Emergency battery backup options available

How to Order

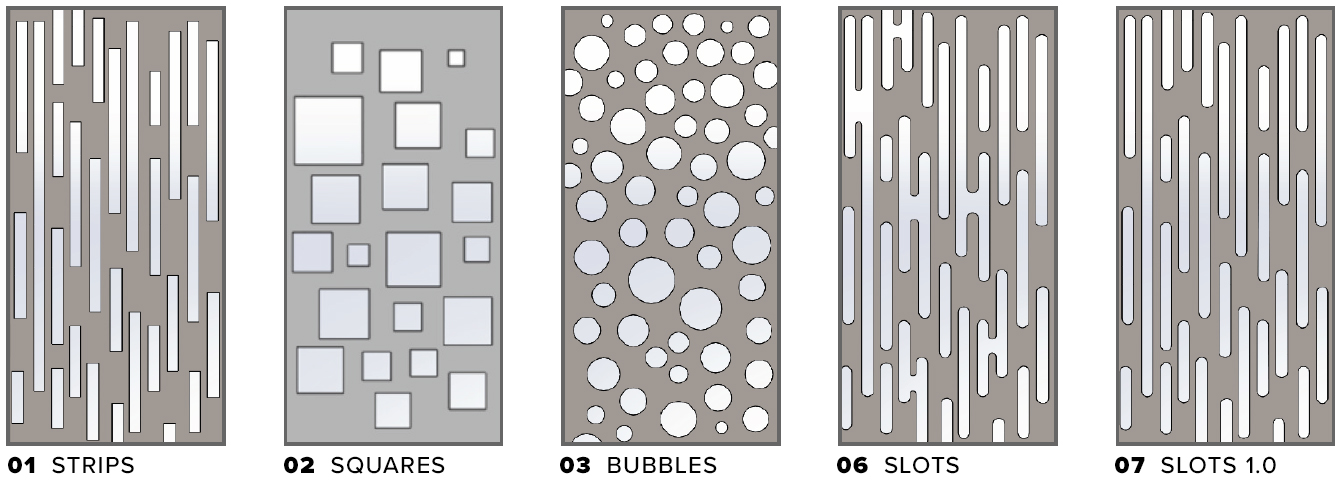

Step 1: Choose From 5 Different Patterns

5 different patterns to choose from

Quote Mark

These patterns gave us so many options – from small accents, to full-ceiling lighting.”

Step 2: Select a Size

  • 14L (12”W x 48”L)
  • 22L (24”W x 24”L)
  • 24L (24”W x 48”L)
    Note: 14L is only available in selectable

Step 3: Choose Wattage Package
(choose between Wattage Selectable and Fixed Package)

WATTAGE SELECTABLE

14L
Defaulted 30 Watts / 2300 Lumens;
20 Watts / 1600 Lumens;
30 Watts / 2300 Lumens;
40 Watts / 2800 Lumens
options on a 3-position switch.

22L
Defaulted 30 Watts / 2400 Lumens;
20 Watts / 1700 Lumens;
30 Watts / 2400 Lumens;
40 Watts / 3100 Lumens
options on a 3-position switch.

24L
Defaulted 30 Watts / 2300 Lumens;
30 Watts / 2300 Lumens;
40 Watts / 3000 Lumens;
50 Watts / 3600 Lumens
options on a 3-position switch.

FIXED PACKAGE
Select from wattages listed under desired size

14L
N/A

22L
30 Watts / 2334 Lumens;
36 Watts / 2800 Lumens

24L
40 Watts / 2400 Lumens;
50 Watts / 3100 Lumens

Step 4: Choose Color Temp

WATTAGE SELECTABLE

22L and 24L
Package includes 35K,40K,50K color temperature for both sizes

FIXED PACKAGE
Select from wattages listed under desired size

35K
40K

To learn more about Saylite's Laser Panels:

Download Sales Sheet  Contact Your Rep Today! →

File Downloads:

Intro Laser Panels Spec Sheet

Laser Panels Spec Sheet

Laser Panels IES File
